防油限制開關  (Made in Taiwan)

功能 :  可配合各種不同之連桿及頭  具多種使用特性曲線  接線頭具帽式覆蓋螺絲  防塵、防油、防水  不鏽鋼主零件  規格及尺寸標準化 1/2” conduit entry.  適用溫度 +15°F  to +175°F  (-10℃ to  +80℃)   所有密封式限制開關都是雙迴路限制開關,1NO(常開)與1NC(常閉 )迴路,各迴路接點俱為兩段式絕緣。   額定電壓 :   10A 125 or 300V AC(resistive) 0.8A 125 VDC(resistive) 0.4A 250V DC 1/2HP 125 V AC 1HP 250 V AC     電氣迴路 :       特性 :   Operating speed 1mm to 2m/sec Operating frequency Mechanically: 120 operations/min. Electrically: 30 operations/min. Contact resistance 15m  max.(initial) Insulation resistance 100M  min.(at 500 VDC) Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals 2,200 VAC, 50/60 Hz for 1 minute between each terminal and non-current-Carrying metal part and between each terminal ground. Vibration Malfunction durability:10 to 55Hz 1.5mm double amplitude Shock Mechanical durability: Approx.1,000m/sec2 (approx. 100G s) Malfunction durability:Approx.300m/sec2(approx.30 G s) Ambient operating temperature Operating:-10 to +80 Humidity 95% RH max Service life Mechanically: 15,000,000 operations min Electrically:(2.5A, 110VAC)MAX 500,000 operations min. Degree of protection IEC 529 class IP65 (Sealed accessories requirement)

密封式限制開關  (Made in Taiwan)

功能  小型設計種類齊全與強制脫離安全開關可供選擇  防油、防水程度佳，符合IP67  標準品附2m或3m電纜線(VCTF或 SJTO電纜)  SJTO電纜線為UL認證之耐油纜線  標準型、側出線型、快速連結型     標準型   ORDERING CODE :     電纜規格、長度       VCTF Cable (0.75mm2 x 4c) SJTO Cable (UL approved) (18AWG x 4c)     ELECTRICAL RATING   5A 125 or 250 V AC   3A 30 V DC   0.4A 125 V DC       CIRCUITRY

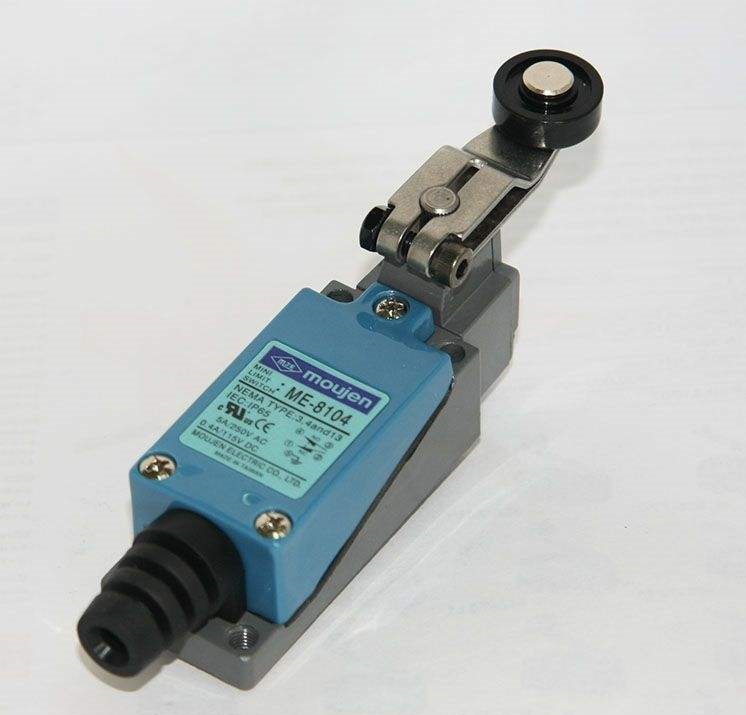

茂仁行程開關ME小型限制開關：
ME-8108，ME-8108-M，ME-8104，ME-8104-M，ME-8107，ME-8111，ME-8104-L，ME-8108-L，ME-8122-P，ME-8112，ME-8112-P，ME-8122，ME-8169，ME-8166，ME-9011，ME-9101-HI，ME-8000
M6照光式按鈕開關系列/蜂鳴器： M-261，M-262，M-271，M-272，M-270，M-232，M-231，M-030，M-218D，M-218E，M-218A，M-218B，M-218C，M-217A，M-217B，M-217C，M-170，M-230
MV小型微動開光：MV-001，MV-3002，MV-3003，MV3000，MV-3000-NC，MV-3004S，MV-3004-P，MV-3004，MV-3003L，MV-3005-P，MV-3005，MV-3000-NO，MV-3001
MN小型橫式限制開關:
MN-5100-P,MN-5140,MN-5100,MN-5110L,MN-5110XL,MN-5110-P,MN-5121,MN-5120,MN-5110,MN-5124,MN-5311-P,MN-5312-P,MN-5311,MN-5144,MN-5310-P,MN-5141,MN-5161,MN-5169,MN-5166,MN-5312,MN5310
MJ防油限制開關：
MJ-7204 O，MJ-7000，MJ7104，JM7204，MJ-7102，MJ-7102R，MJ-7103，MJ-7104-P，MJ-7204-P，MJ-3243，MJ-3241，MJ-7101，MJ-7104-26，MJ-7204-26，MJ-7108-26，MJ7208-26，MJ7106，MJ-3242-M，MJ-3242，MJ-3244，MJ-7108，MJ7208，MJ-7108P，MJ7208P，MJ-7107L，MJ7207L，MJ-7107，MJ-7207
MEA輕小型限制開關：
MEA-9111，MEA-9111-P，MEA-9104，MEA-9104G，MEA-9122，MEA-9122-Z，MEA-9112-Z，MEA-9112-P，MEA-9122-P，MEA-9104G，MEA-9104-？，MEA-9108，MEA-9104-L，MEA-9169，MEA-9161，MEA-9107，MEA-9166
M4密封式限制開關：
M4-4101，ME-4311，ME-4102R，ME-4104，M4-4114，M4-4104S，M4-4102，M4-4310，M4-4312，M4-4106，M4-4102Q，ME-4112R，M4-4111，M4-4112，M4-4103，M4-4102S
MJ2 Z型微動開關：
MJ2-1308，MJ2-1300，MJ21306，MJ2-1543，MJ2-1701，MJ2-1711，MJ2-1712，MJ2-1317，MJ2-1513，MJ2-1306-P
MJ1防油橫式限制開關：
MJ1-6102，MJ1-6102R，MJ1-6101，MJ1-6114
MTB端子臺：
MTB-010，MTB-020，MTB-212，MTB-213，MTB-060，MTB-211，MTB-030
